VPN connections can be created to establish site-to-site connections. To create a VPN connection:


  1. Click NETWORKS.


Hyper V click networks 1.png



  1. Select the network that you would like to modify.


Hyper V select a network 1.png


  1.  Click SITE-TO-SITE VPN.


 Hyper V click site to site vpn 1.png


  1. Click CREATE VPN.


 Hyper V click create vpn 1.png

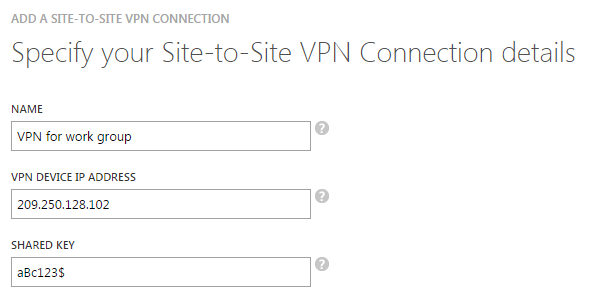

  1. Enter the name for your VPN connection in the NAME field.
  2. Enter the IP address of your VPN device in the VPN DEVICE IP ADDRESS field.
  3. Enter the password that will be used by the virtual network to connect to the device in the SHARED KEY field.


Hyper V specify site to site vpn connection details 1.png


  1. Click the arrow to proceed.

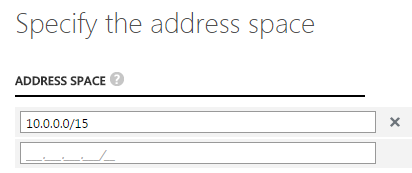

  2. Specify the address space.


Hyper V specify address space 1.png


  1. Click the arrow to proceed.

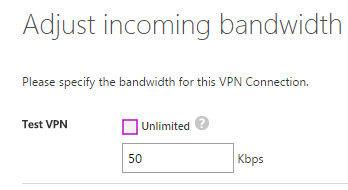

  2. If you would like to set a maximum incoming bandwidth limit for the connection, unselect the Unlimited checkbox. Proceed to step 13 if you kept the checkbox enabled.
  3. Enter a bandwidth speed (in numerals) in the Kbps field.


Hyper V adjust incoming bandwidth1.png


13.    Click the arrow to proceed.

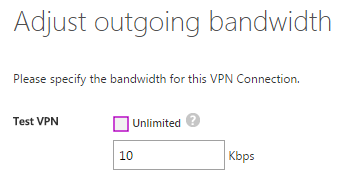

14.    If you would like to set a maximum outgoing bandwidth limit for the connection, unselect the Unlimited checkbox. Proceed to step 16 if you kept the checkbox enabled.
15.    Enter a bandwidth speed (in numerals) in the Kbps field.


Hyper V adjust outgoing bandwidth 1.png



16.    Click the checkmark.


Your VPN connection is now setup.
