If you would like to increase the size of a virtual machine disk, follow the steps below:


  1. Click VIRTUAL MACHINES.


Hyper V click virtual machine 1.png


  1.  Select the virtual machine that needs its disk extended.
  2. If the virtual machine is running, click SHUTDOWN.


Hyper V shutdown a virtual machine 1.png



  1. Go into the virtual machine.


Hyper V view stopped virtual machine 1.png


  1.  Click CONFIGURE.


Hyper V click configure 1.png

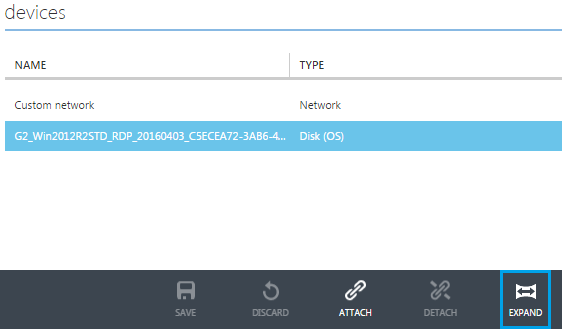

  1. Select the disk, and then click EXPAND.


 Hyper V extend a virtual machine 1.png

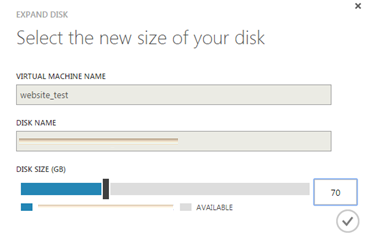

  1. Use the slider to increase the disk size.
  2. Click the checkmark.


 Hyper V extend a virtual machine 2.png


  1. Power on the virtual machine and RDP to it.
  2. Go to Server Manager > File and Storage Services > Volumes > Disks.


Hyper V extend a virtual machine 3.png


  1. Right-click the disk, and click Extend Volume…


Hyper V extend a virtual machine 4.png


The extra volume will be added to the disk.
