Attach your virtual machine to a network in Hyper V

Your guide to pathway services

Jump to: navigation, search
Before you can access your virtual machine you need to attach it to a virtual network. To attach a virtual machine to a network:

  1. Click VIRTUAL MACHINES.


Hyper V click virtual machine 1.png


  1. Select the name of virtual machine that you would like to attach.


Hyper V select virtual machine 1.png


  1. Click CONFIGURE.


Hyper V click configure virtual machine 1.png

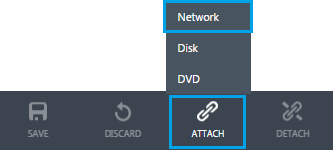

  1. Click ATTACH.
  2. Click Network.

Hyper V attach virtual machine to a network 1.png

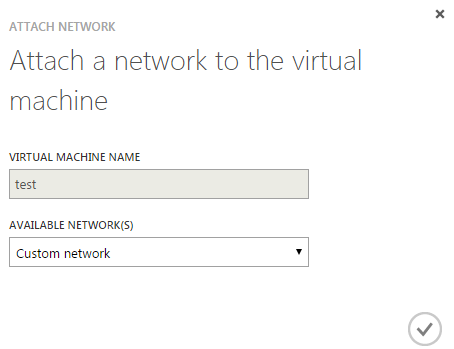

  1. From the AVAILABLE NETWORK(S) dropdown list, select a network to attach the virtual machine to.
  2. Click the Checkmark.

Hyper V attach a network to the virtual machine 1.png



The virtual machine is now attached to the virtual network you selected.
